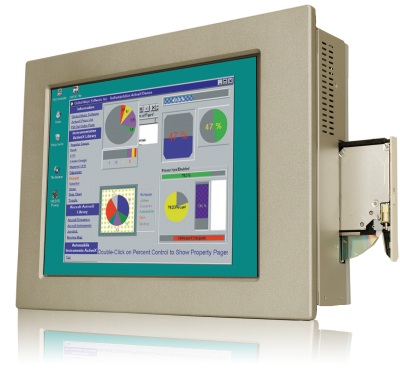

PPC-5150A-H61

SKU 2925

The PPC-51xxA-H61 panel PC is for industrial environments like production lines and machine automation. The PPC-51xxA-H61 provides all the features of a PC, combined with a touch panel screen for mouse and keyboard free data input. The PPC-51xxA-H61 provides wired networking for integration into company networks. The major external device connections include USB 2.0, USB 3.0 and serial port connectors. Storage options include a 2.5” hard drive, a CompactFlash® card slot and optional mSATA, allowing for flexibility in choosing solid state drives or traditional hard drives. A VGA output on the bottom panel allows the PPC-51xxA-H61 to connect to a second screen for duplicating the screen contents or extending the user interface.

  • High brightness TFT-LCD panel with LED backlight
  • Multiple storage options: 2.5″ SATA HDD, CF slot, and mSATA
  • Dual Ethernet provides continuous network service and allows sharing among different workgroups in two different subnets
  • Optional PCI / PCIe x 1 expansion slot
  • Optional slim type CD-ROM drive bay
  • Robust aluminum front bezel and metal casing
  • IP 66 compliant front panel
  • IEI One Key Recovery solution allows you to create rapid OS backup and recovery (Over 4GB storage capacity)

PPC-5150A-H61-i5/R-R10: 15” 400 cd/m2 XGA Panel PC with POS-H61, Core i5 Dual Core 2xxxTCPU (Above 2.7GHz), TDP 35W, 2GB DDR3 RAM*2, Silver color, PSU ACE-A622A, touch screen, RoHS
PPC-5150AD-H61-i5/R-R10: 15” 400 cd/m2 XGA Panel PC with POS-H61, Core i5 Dual Core 2xxxTCPU (Above 2.7GHz), TDP 35W, 2GB DDR3 RAM*2,Silver color, PSU ACE-4520C , touch screen, RoHS
