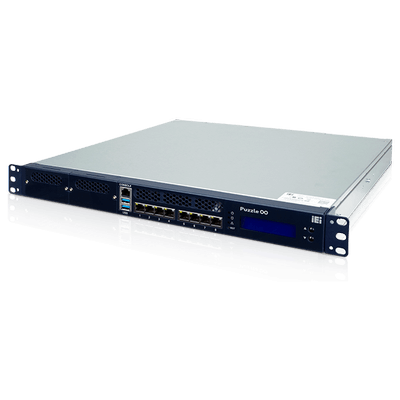

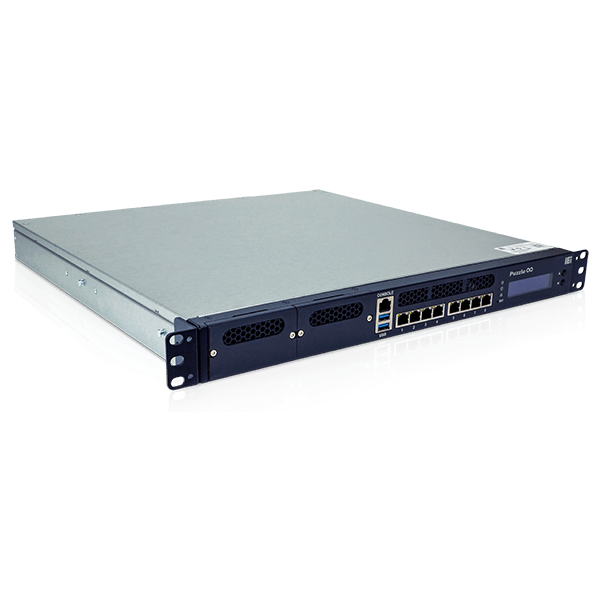

PUZZLE-IN001

IEI PUZZLE series is the next generation product of network appliance which includes a broad portfolio of x86- based and ARM-based network platform built with the latest generation Intel, AMD, Marvell, NXP or Cavium processors, and Aquantia, Intel, Broadcom, Mellanox network interface controllers. These products are built for proprietary network appliance and uCPE (Universal Customer Premise Equipment).

  • Intel® Xeon® E, 8th Generation Intel® Core™/Pentium®/Celeron® Processor

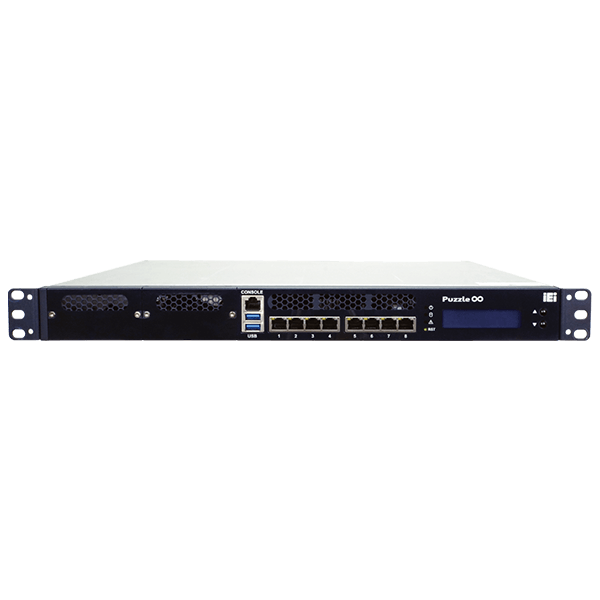

  • Support 8 x GbE RJ45 via Intel® I211, and two IEI Network Module
  • 2 x 288-pin Long DIMM, DDR4 2100MHz ECC & non ECC, up to 32GB
  • 1 x RJ45 Console, 2 x USB 3.0, LCM
  • 2 x 2.5” SATA drive bay, 1 x M.2 B-Key (SATA, USB 3.0), 1 x PCIe mini
  • Support PCIe x4 and PCIe x8 slot

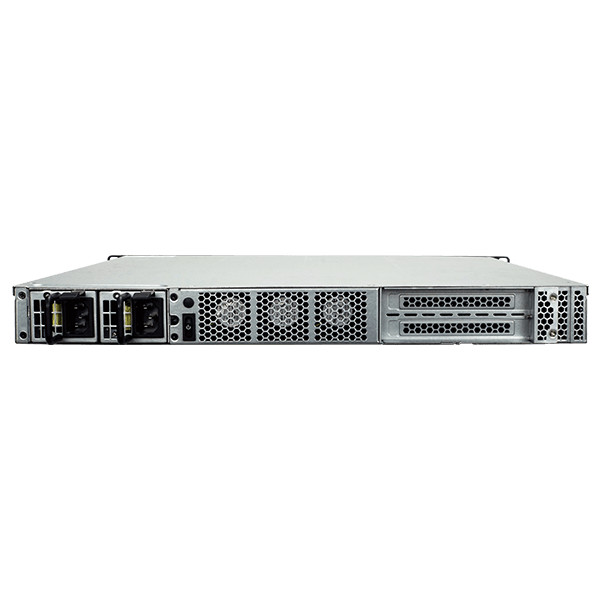

  • Redundant PSUs



The signal of the one PCIe 3.0 x8 slots and one Networking Module slot (PCIe x8) directly connect to CPU instead of DMI 3.0 channel. By doing this, the PCIe 3.0 x8 add-on cards and high speed Networking Modules can run with lower latency and achieve complete AI card and Networking Module performance.

PUZZLE is about the uCPE consists of software virtual network functions (VNFs) running on a standard operating system hosted on an open server. An ideal uCPE deployment supports a multi-vendor multi-component construction and enables rapid development as well as open multi-vendor systems.

PUZZLE Finder can help users quickly develop environment and network applications, and allow them to perform PUZZLE system management, resource monitoring, version maintenance, software installation, software update and gaining information of CPU, memory, Internet, etc.

PUZZLE series are AI hardware ready system ideal for deep learning inference computing to help you get faster, deeper insights into your customers and your business.

PUZZLE-IN001-i3T/16G/R-R10: 1U Rackmount Network Appliance with Intel® Gen8 Core™ i3-8100T processor, 16GB DDR4, two 256GB SSD, and eight 1GbE, two PulM & two PCIe expansion, Redundant Power, RoHS
PUZZLE-IN001-i3T/R-R10: 1U Rackmount Network Appliance with Intel® Gen8 Core™ i3-8100T processor, two DDR4 slots, and eight 1GbE , two PulM, two PCIe expansion, Redundant Power, RoHS
PUZZLE-IN001-XE/16G/R-R10: 1U Rackmount Network Appliance with Intel® Gen8 Xeon® E-2136 processor, 16GB DDR4, two 256GB SSD, and eight 1GbE , two PulM, two PCIe expansion, Redundant Power, RoHS
PUZZLE-IN001-XE/R-R10: 1U Rackmount Network Appliance with Intel® Gen8 Xeon® E-2136 processor, two DDR4 slots, and eight 1GbE , two PulM, two PCIe expansion, Redundant Power, RoHS
