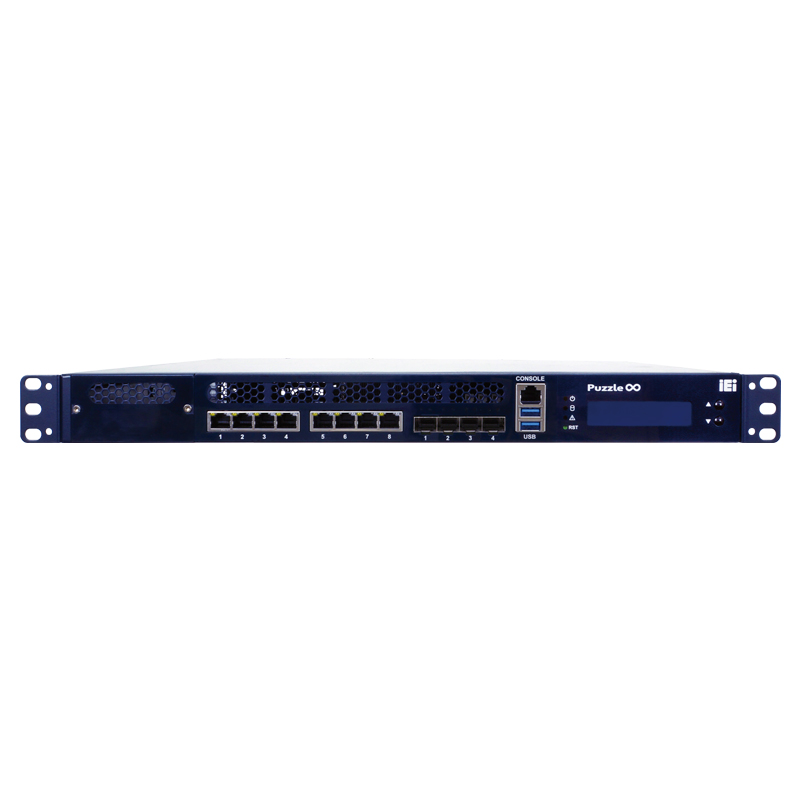

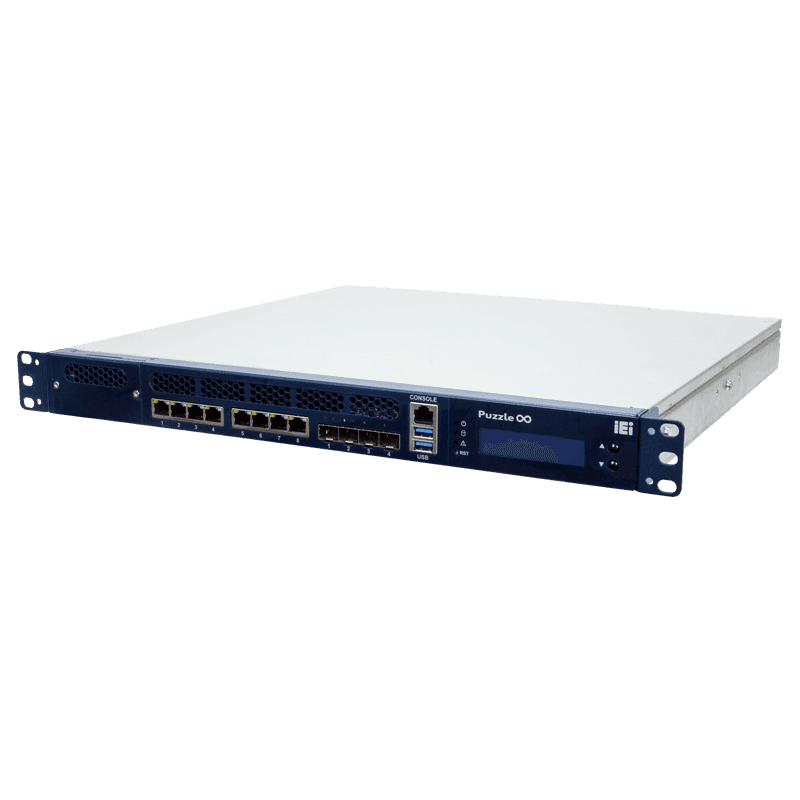

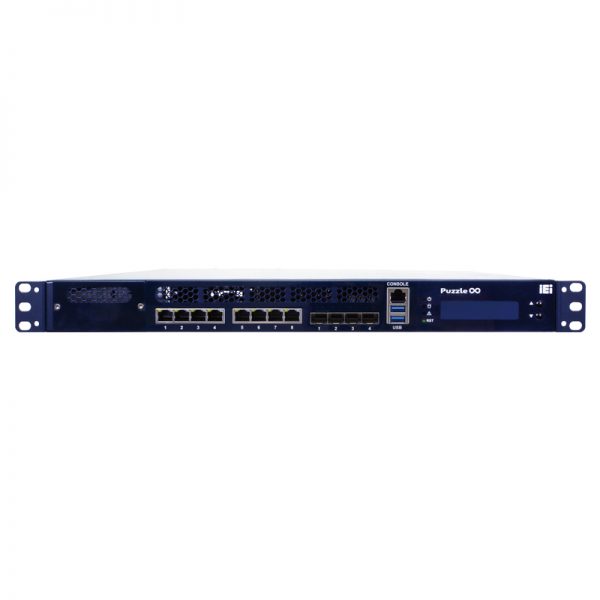

PUZZLE-IN004

Equipped with Intel® Xeon® Processor D-2100 series (Skylake-D) which is optimised for computing & network. Integrated with up to 512GB Quad-channels DDR4, the PUZZLE-IN004 enables lightning-fast multi-tasking with low power consumption. PUZZLE-IN004 is designed with four port 10GbE SFP+ and eight ports of 1GbE (Intel I211) configuration for non-stop network transmission. With a hardware secure multi-tenancy, the Puzzle-IN004 also support Intel® QAT (QuickAssist Technology), PTT(Platform Trusted Technology), Boot Guard,and Intel® AVX-512.

● Intel® Xeon® D-2100 series processor (Skylake-D) with optional Intel QAT
● Support eight GbE RJ-45 via IntelI211-AT, four 10 GbE SFP+ and IEI networking module
● Support open source software, such as pfSense® and OPNsense®.
● 8 x 288-pin RDIMM, 2 x DDR4 2666MHz, RDIMM up to 256GB / LRDIMM up to 512GB
● 1 x RJ-45 Console, 1 x USB 3.2 Gen 1 (5Gb/s), 1 x USB 2.0, LCM
● 2 x 2.5” SATA drive bay, 2 x M.2 M key 2280 (PCIe x4),1 x PCIe Mini(PCIe + USB 2.0) with SIM card
● Support one PCIe x8 slot, one PulM module slot

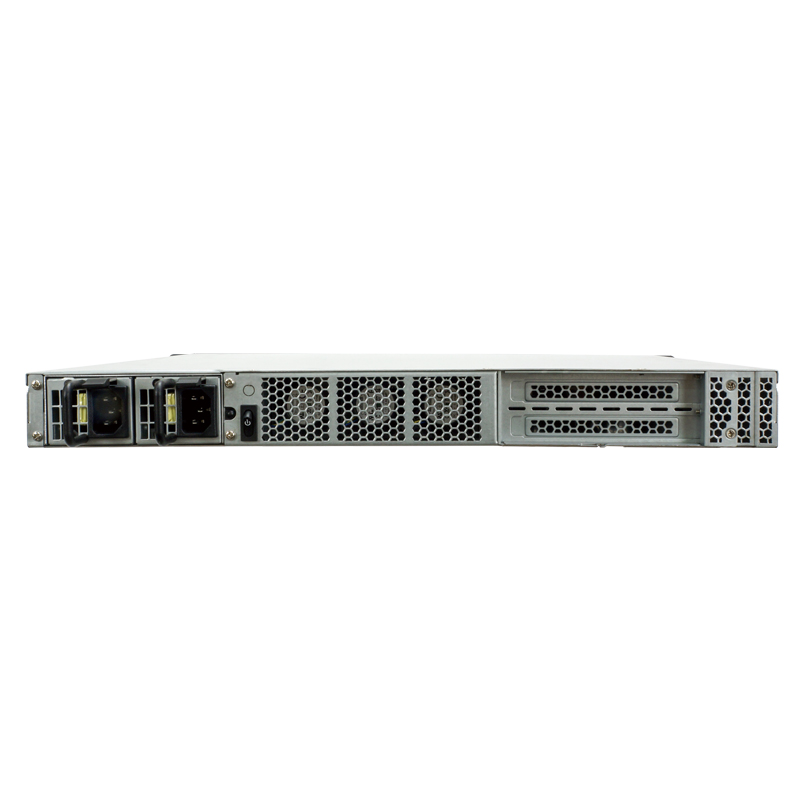

● Redundant PSUs

PUZZLE-IN004-XD1/32G/R-R10: 1U Rackmount Network Appliance with Intel® Xeon® D-2145NT Processor, 32GB DDR4, two 256GB SSD, eight 1GbE, four 10 GbE, one PulM module and one PCIe expansion, RoHS
PUZZLE-IN004-XD2/32G/R-R10: 1U Rackmount Network Appliance with Intel® Xeon® D-2146NT Processor, 32GB DDR4, two 256GB SSD, eight 1GbE, four 10 GbE, one PulM module and one PCIe expansion, RoHS
PUZZLE-IN004-XD3/32G/R-R10: 1U Rackmount Network Appliance with Intel® Xeon® D-2166NT Processor, 32GB DDR4, two 256GB SSD, eight 1GbE, four 10 GbE, one PulM module and one PCIe expansion, RoHS
PUZZLE-IN004-XD4/32G/R-R10: 1U Rackmount Network Appliance with Intel® Xeon® D-2177NT Processor, 32GB DDR4, two 256GB SSD, eight 1GbE, four 10 GbE, one PulM module slot and one PCIe expansion, RoHS
