SA-112-N

SKU 4497

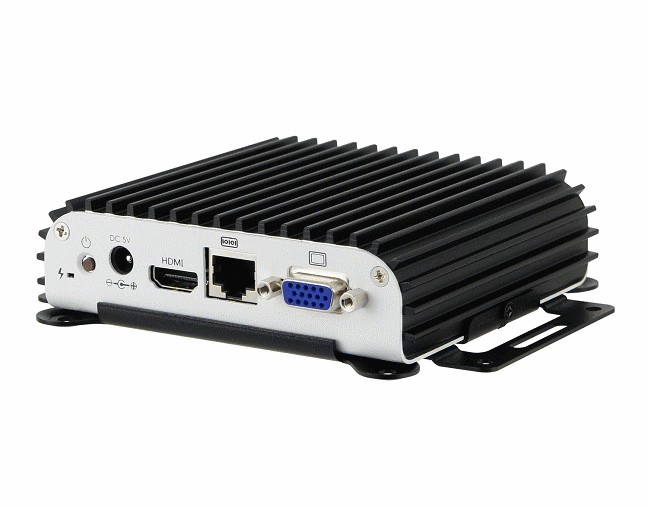

i.MX6 Dual/Quad Processor-based Fanless Signage Player with HDMI and VGA Output

A fanless embedded system designed for digital signage applications.

See the Product Datasheet for full Specifications

  • Supports Freescale i.MX6 Dual/Quad Processor
  • eMMC NAND Flash 8GB on board
  • Onboard DDR3L, 1GB 533MHz, (1066MT/s)
  • 1x VGA + 1x HDMI (w/o HDCP)
  • 1x GbE RJ45 LAN, 1x COM (RS-232), 1x Min-USB (OTG), 2x USB, 1x SD card slot
  • Supports Wi-Fi 802.11 b/g/n
  • 1x SIM card slot and 1x Mini PCI-E slot for 4G function (optional)
  • 5V DC-in power input
  • Wide operating temperature supports from -40°C to 75°C
  • Ruggedized, fanless and compact design

SA-112-NDL:  ARM-based signage player with CPU IMX6DL MCIMX6U5DVM10AB Commercial 1GHz, eMMC NAND Flash 8GB & DDR3L 1GB on board, 25W power adaptor, (RoHS).

SA-112-NQC:  ARM-based signage player with CPU IMX6QC MCIMX6Q6AVT10AD Automotive 1GHz, eMMC NAND Flash 8GB & DDR3L 1GB on board, 25W power adaptor, (RoHS).
