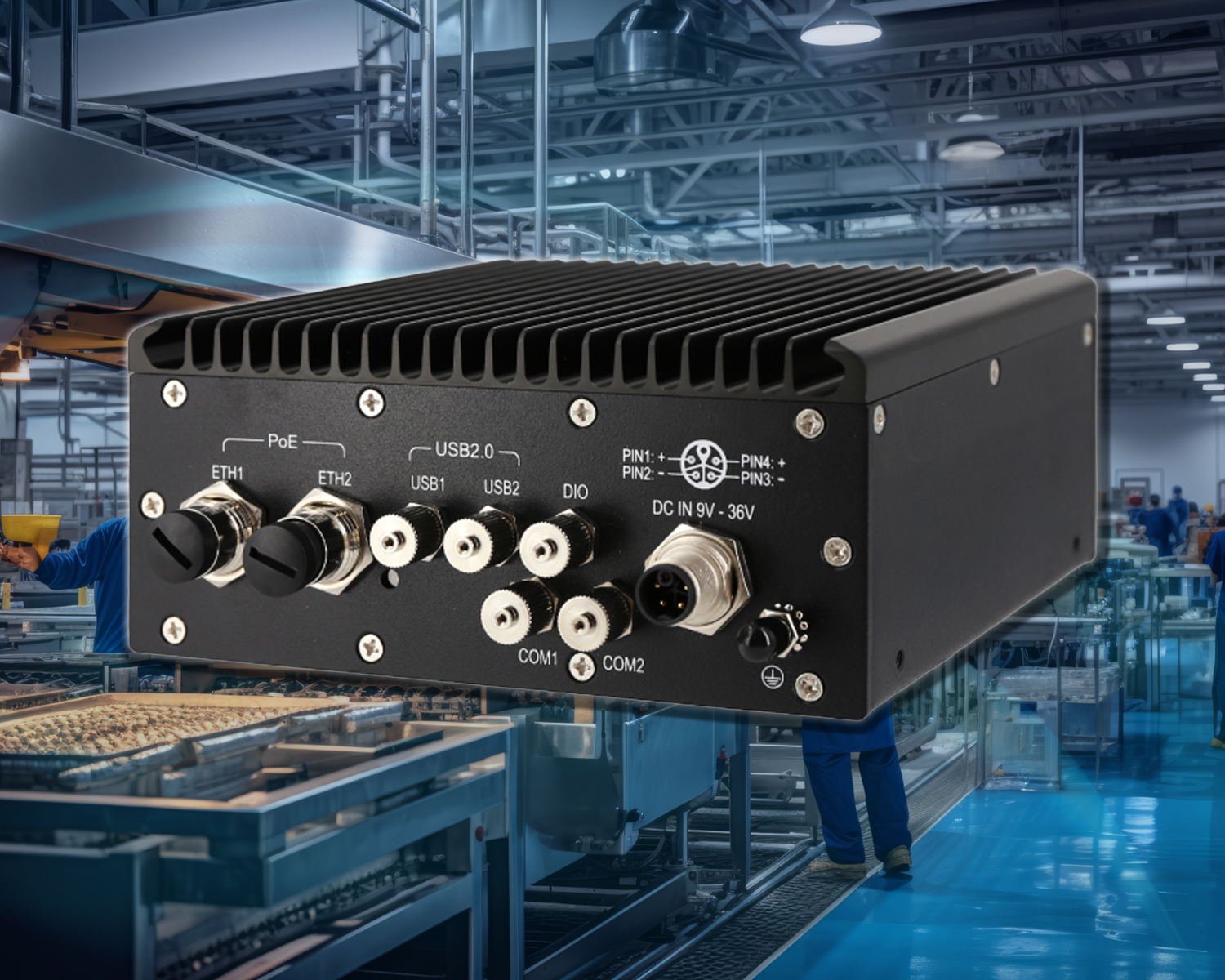

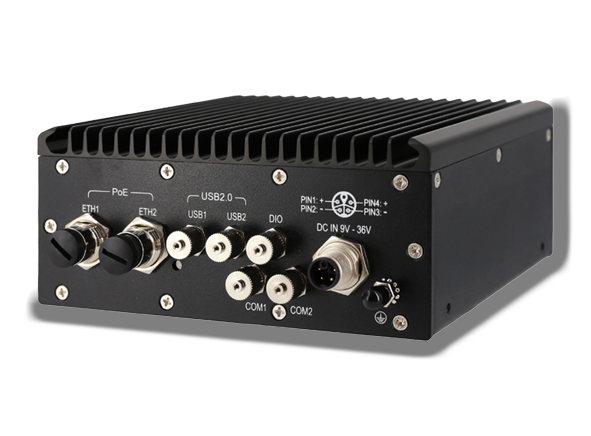

SBOX-2624P-IP66

Rugged IP66 Industrial Computer for Harsh Environments

Key Features:

  • AMD Ryzen™ Embedded R2312 2C/4T Processor
    • 2 x HDMI® Supports Resolution Specified in HDMI 2.0b
    • 2 x GbE w/ PoE
    • 2 x COM
    • 1 x M.2 2280 Key M Supports NVMe and SATA
    • 1 x M.2 3042/52 Key B Supports USB 3.2
    • 1 x M.2 2230 Key E Supports PCIe and USB2.0
    • 9V – 36V DC Input
    • IP66 Enclosure for Harsh Environment
    • EN 50155 Certified

Backplane Systems Technology is proud to introduce the SINTRONES SBOX-2624P-IP66, a compact, fanless, and fully IP66-rated industrial computer designed to deliver exceptional reliability in harsh and outdoor environments.

Powered by the AMD Ryzen™ Embedded R2312 processor with integrated Radeon™ graphics, the SBOX-2624P-IP66 provides strong computing performance for intelligent transportation, edge AI, and industrial automation applications. Its robust design offers complete protection against dust and water ingress, making it ideal for deployment in rail, in-vehicle, and outdoor control systems.

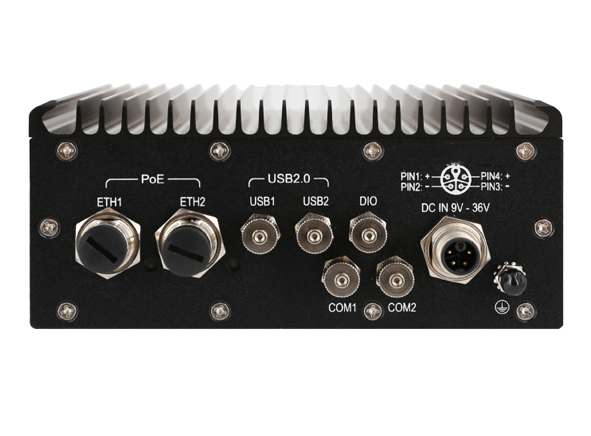

The system supports dual HDMI 2.0b (4K @ 60 Hz), dual GbE with PoE, dual COM ports, and multiple M.2 slots for NVMe/SATA storage and wireless connectivity. With a wide DC input of 9–36 V, reverse-polarity protection, and an operating temperature range of -30 °C to +60 °C, it ensures stable performance in demanding conditions.

Certified to EN 50155 standards and built to SINTRONES’ high manufacturing quality, the SBOX-2624P-IP66 is a dependable choice for mission-critical applications in transportation, industrial, and smart infrastructure projects.

ORDERING INFORMATION
Model Number

SBOX-2624P-IP66

Description

AMD Ryzen™ Embedded R2312 w/ 2x HDMI® / 2 x GbE PoE / 2 x COM / DC-IN 9-36V / IP66 Waterproof Computer

State of Origin

Made in Taiwan
