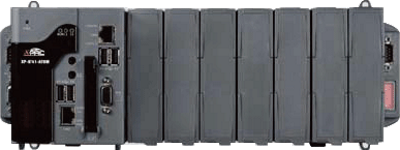

XP-8731-CE6

SKU 4689

XP-8731-CE6 Series is the new generation Windows CE 6.0 based PAC

XP-8731-CE6 Series is the new generation Windows CE 6.0 based PACs of ICP DAS. It is equipped
with a x86 CPU (1 GHz) dual-core, various connectivity (VGA, USB, Ethernet, RS-232/485) and
1/3/7 I/O slot(s) for high performance parallel I/O modules (high profile I-8K Series) and serial I/O
modules (high profile I-87K series).

The benefits of running Windows CE 6.0 on XP-8×31-CE6 include hard real-time capability, small core size, fast boot speed, interrupt handling at a deeper level and achievable deterministic control. XPAC is also capable of running PC-based control software such as Visual Basic .NET, Visual C#,etc. It has all of the best features of both traditional PLCs and Windows capable PCs.
For software copy protection, programmers can design software based on the 64-bit hardware
serial number for making software copy protected.

  • x86 CPU, 1 GHz, dual-core
  • Windows CE 6.0
  • Hard Real-Time Capability
  • Rich I/O Expansion Ability (RS-232/RS-485, FRnet,CAN)VGA Port Output
  • Support eLogger HMI
  • Redundant Power Inputs
  • Operating Temperature: -25 ~ +75°C

XP-8731-CE6: Standard XP-8000-CE6 with x86 CPU, Windows CE6 OS, and 7 I/O Slots (RoHS)
