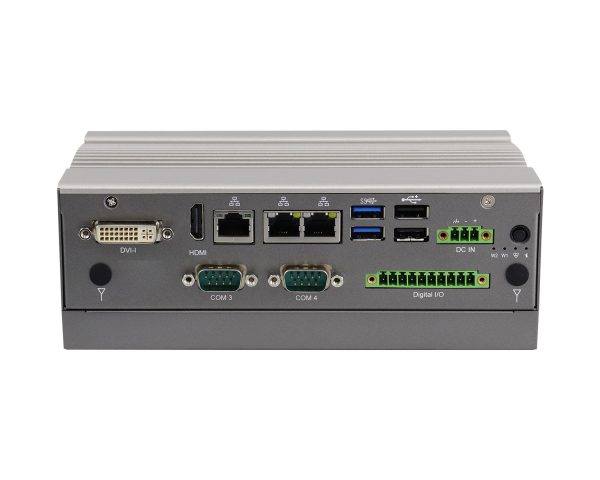

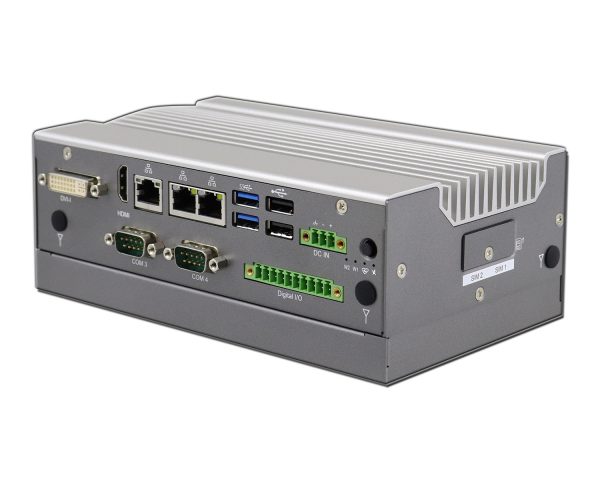

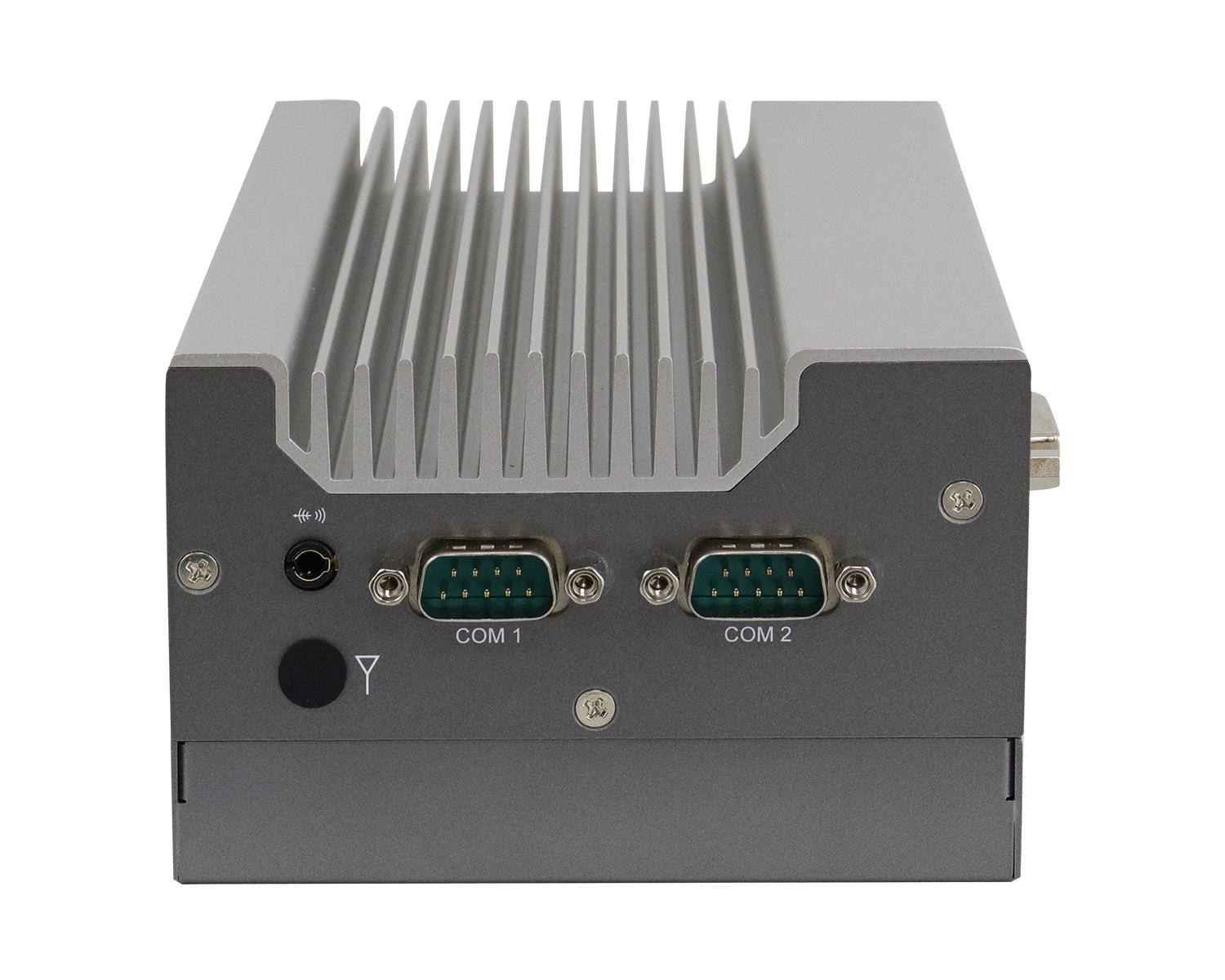

AGS103T

Ultra-compact IoT gateway edge computing system integrating the Intel Atom® x6000E Series processors that deliver up to 4 cores with 40% increase in CPU performance and improved graphics when compared with previous versions.

Key Features:

  • Intel® Atom® x6413E/x6211E Processors
  • GPIO 4-in/4-out & 1x DVI-I & 1x HDMI
  • Over/Under/Reverse Voltage Protection
  • Extended Operating Temperature from -20°C to 70°C
  • 9V~36V DC Wide-Range Power Input
  • 1x 3042/2242 M.2 B-Key, 1x Micro SD, Optional 1x 2.5’’ SSD
  • 3x Gigabit Ethernet, 3x Full-Size Mini PCI-E Sockets & 2x SIM Card Slots
  • 4x COM (RS232/422/485), 2x USB 3.1 & 2x USB 2.0
  • Supports DIN-Rail Mount, Wall Mount & TPM 2.0



AGS103T-6413M Fanless DIN-rail System supports TPM2.0 w/ Intel® Atom® Processor x6413E, 3x Gigabit Ethernet, 4x COM, w/o Memory, storage, power adaptor
AGS103TS-6413M Fanless DIN-rail System supports TPM2.0 w/ Intel® Atom® Processor x6413E, 3x Gigabit Ethernet, 4x COM, w/o Memory, storage, power adaptor, w/ 2.5” storage slot
AGS103T-6211M Fanless DIN-rail System supports TPM2.0 w/ Intel® Atom® Processor x6211E, 3x Gigabit Ethernet, 4x COM, w/o Memory, storage, power adaptor
AGS103TS-6211M Fanless DIN-rail System supports TPM2.0 w/ Intel® Atom® Processor x6211E, 3x Gigabit Ethernet, 4x COM, w/o Memory, storage, power adaptor, w/ 2.5” storage slot
