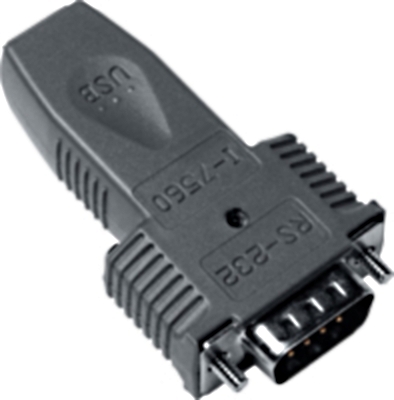

I-7560

SKU 3564

The I-7560 contains a Windows serial com port via it’s USB connection and is compatible with new and legacy RS-232 devices. USB Plug-and-Play allows easy serial port expansion and requires no IRQ, DMA, or I/O port resources.

The I-7560 features a full set of RS-232 modem data and control signals (TxD, RxD, RTS, CTS, DSR, DTR, DCD, RI and GND) on it’s PC compatible DB-9 male connector. It also features a high-speed 115200 bps transmission rate.

The I-7560 is powered from the USB bus and no additional power supply is needed.

  • Fully Compliant with the USB 1.1/2.0 (High Speed)
  • No External Power Supply required.
  • Baud Rate, 300 ~ 115200 bps
  • Operating Temperatures, -25 °C ~ +75 °C
  • Driver Supports Windows 98/ME/2000/XP/Vista (32/64-bit)/7 (32/64-bit)/Linux

I-7560 CR: USB to RS-232 Converter (RoHS)
I-7560U CR: USB to RS-232 Converter (RoHS)

  • ICP DAS
