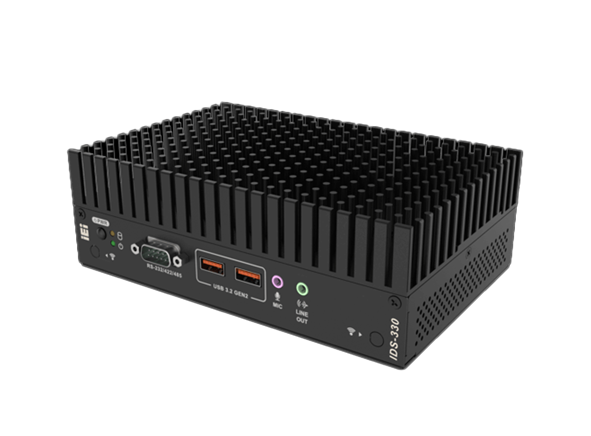

IDS-330-ADL-P

Digital Signage System

Ultra Compact Size

KEY FEATURES:

  • Supported CPUs: Alder Lake 12th Gen Intel® Core™ Solution (up to 10 cores) Intel® Core™ i5-1235U (up to 4.4GHz, 10-core, 15W TDP) Intel® Core™ i7-1255U (up to 4.7GHz, 10-core, 15W TDP)
  • Four HDMI displays up to 4K resolution
  • Two GbE LAN ports
  • M.2 B Key, M.2 M Key & M.2 E Key For expansion
  • Four USB3.2 GEN2x1

Backplane Systems Technology is proud to introduce iEi’s IDS-330-ADL-P. The IDS-330-ADL-P is a powerful and ultra-compact digital signage system that is designed to cater to the demands of graphic-intensive digital signage applications and video walls. This digital signage player is powered by the 12th Gen Intel® Core™ processors (codenamed Alder Lake) and features up to 10 cores, making it an ideal choice for applications that require high-performance computing power. The IDS-330 supports multiple remote management options, including wireless connection and Intel vPro® Enterprise technology, for easy and effective management.

One of the standout features of this digital signage player is its ability to support up to four HDMI displays at 4K resolution, which is perfect for creating eye-catching visual effects and engaging customers. It also comes with two GbE LAN ports and multiple expansion slots, including M.2 B Key, M.2 M Key, and M.2 E Key, which allows for flexibility and scalability in system design.

In addition to its impressive technical features, the IDS-330 is also designed for reliability, with a fanless design that reduces the risk of system downtime, making it an ideal choice for outdoor environments.

With the increasing importance of digital signage in the retail industry, the IDS-330 is well-positioned to help businesses enhance customer experiences while providing eco-friendly and sustainable alternatives to traditional print advertising. With its compact size and powerful performance, the IDS-330 is a versatile and reliable solution for digital signage applications.

Ordering Information

Part No. Description

IDS-330-ADL-P-i5C-R10 Fanless embedded system with Intel® Alder Lake-P i5, on-board 8GB LPDDR4x memory, four HDMI display, 12V DC, two 2.5GbE and RoHS
IDS-330-ADL-P-i7C-R10 Fanless embedded system with Intel® Alder Lake-P i7, on-board 8GB LPDDR4x memory, four HDMI display, 12V DC, two 2.5GbE and RoHS
