Backplane Systems Technology is proud to introduce the Neousys Nuvo-11000 Series, a new-generation rugged fanless embedded computing platform designed for demanding industrial automation, machine vision, Edge AI and intelligent transportation applications.
Powered by Intel® Core™ Ultra 200 Series processors, the Nuvo-11000 supports up to 24 cores and integrates an NPU for dedicated AI acceleration, delivering up to 36 TOPS of AI performance. Combined with DDR5-6400 memory and PCIe Gen5 support, the platform provides the computing capability needed to process increasingly complex vision, analytics and automation workloads directly at the edge.
For multi-camera and connected industrial systems, selected models provide up to five 2.5GbE ports, Gigabit Ethernet, optional 10GbE and PoE+, together with up to eight USB 3.2 Gen2 connections. High-speed PCIe Gen5 NVMe storage further supports applications generating large volumes of real-time data.
Designed for deployment beyond the office, the Nuvo-11000 combines rugged fanless construction with wide-temperature operation and extensive expansion through a PCIe cassette and Neousys MezIO® interface.
For engineers building smarter industrial systems, the Nuvo-11000 provides a powerful, expandable platform for bringing AI and high-performance computing closer to where data is generated.
Key Features
- Intel® Core™ Ultra 200 Series processors
- Integrated AI acceleration with up to 36 TOPS
- Up to 96GB DDR5-6400 memory

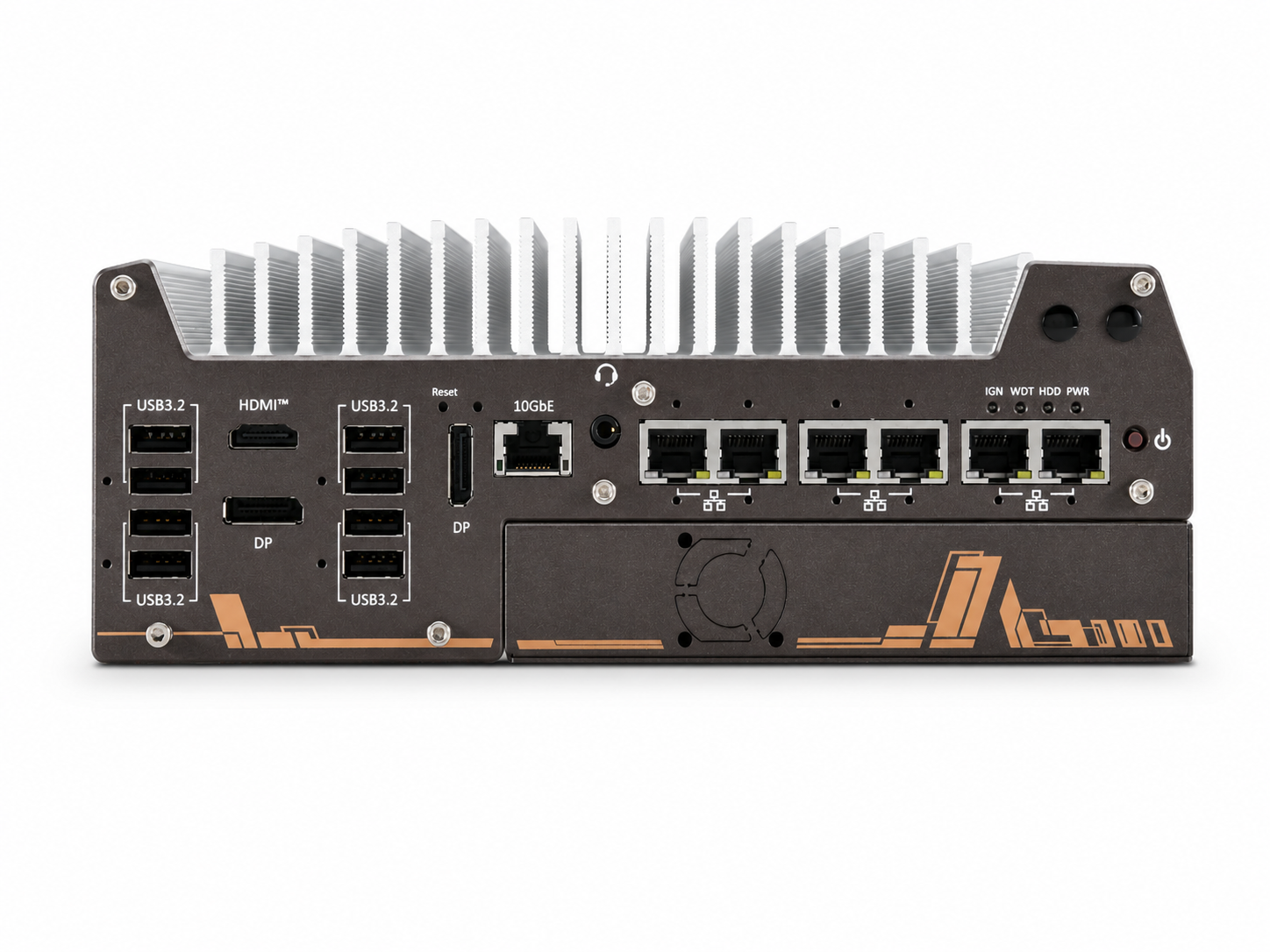

- Multiple 2.5GbE ports with optional 10GbE and PoE+
- Up to 8 × USB 3.2 Gen2
- PCIe Gen5 NVMe storage support

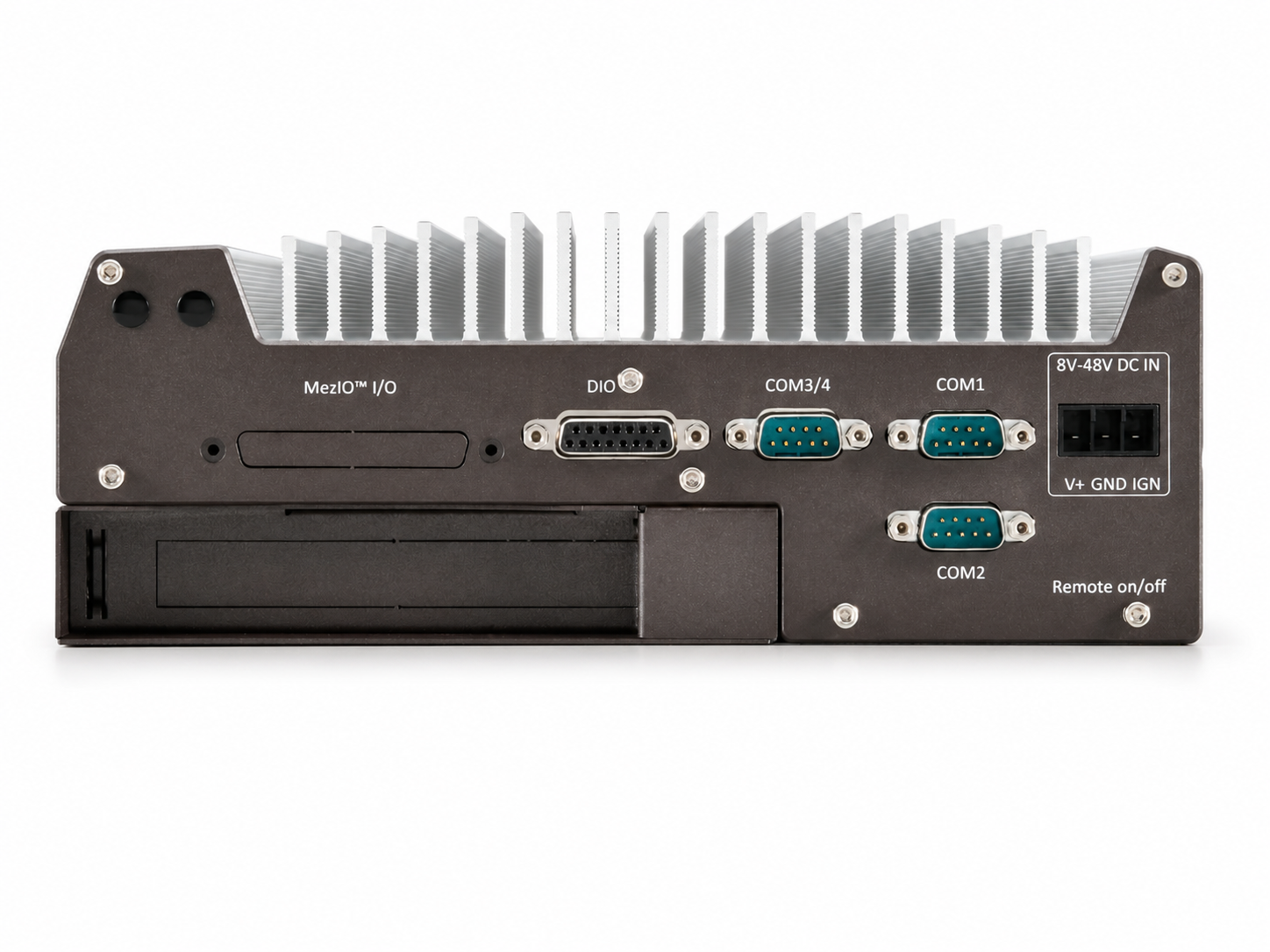

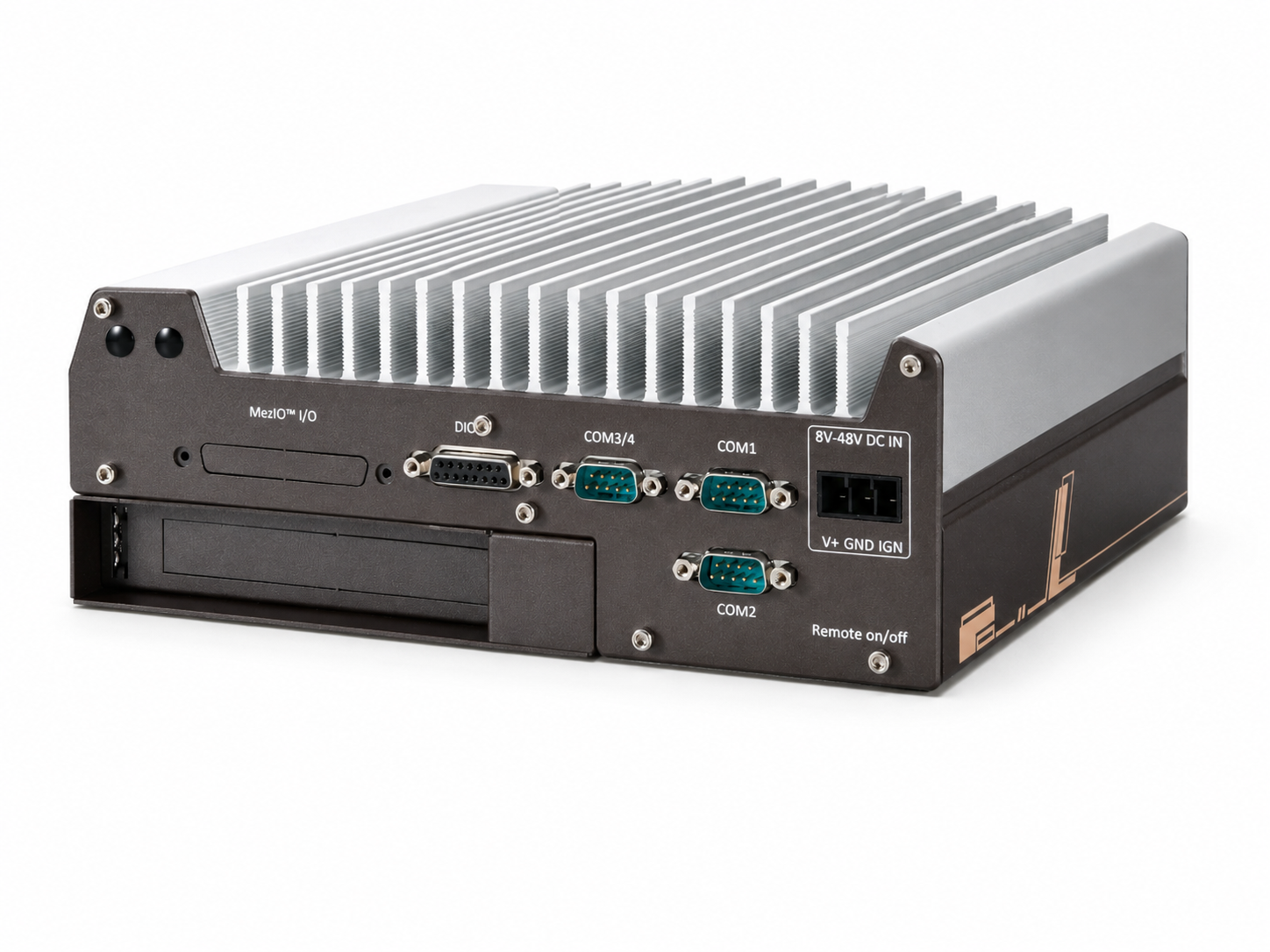

- PCIe cassette and MezIO® expansion
- Isolated digital I/O

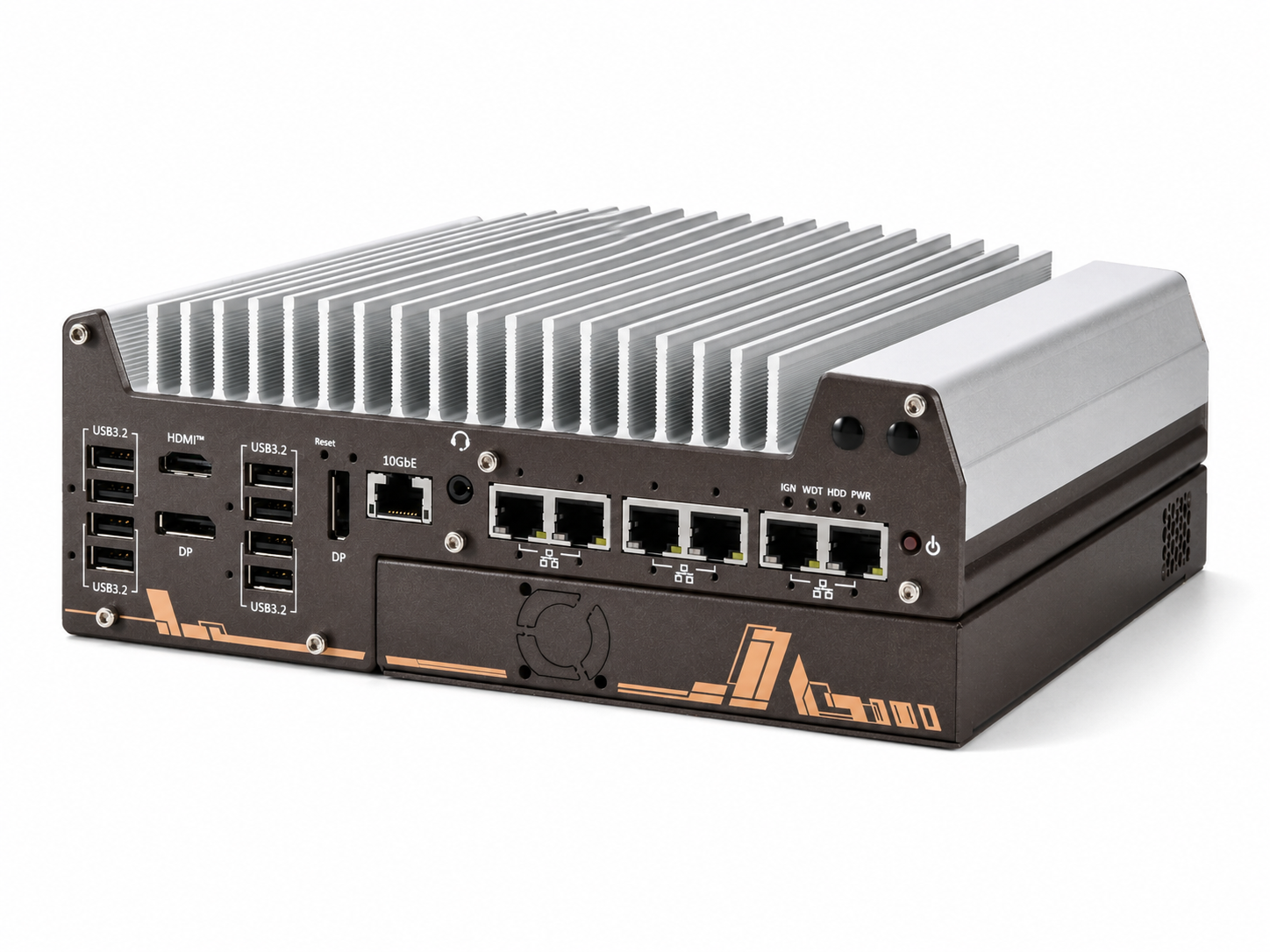

- Rugged fanless design
- Wide-temperature operation for demanding industrial environments operation from -25°C to 70°C on supported configurations
